Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: Fiber Laser
  • Applicable Material: Metal
  • Cutting Thickness: 10mm stainless steel
  • Cutting Area: 1300*2500mm
  • Cutting Speed: 6000mm/min
  • CNC or Not: Yes
  • Cooling Mode: Air Cooling
  • Control Software: Cypcut control system
  • Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, JPG
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Philicam
  • Model Number: FLDJ1325 Fiber
  • Certification: CE, ISO, FDA, CE&ISO*FDA
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Economical 300w cnc fiber laser cutting machine
  • Laser power: 500W
  • Driving system: YASKAWA servo motor and driver
  • Transmission: Ball screw from Germany
  • Guide rail: HIWIN linear square guide rail from Taiwan
  • Control system: Motion control card+PC
  • Axsiliary equipment: Air chiller,water pump, eshaust fan
  • Custom: CNC laser retrofit
  • Warranty: 1 year

Packaging & Delivery

Packaging Details: Strong plywood case for fiber laser cutting machine
Delivery Detail: Shipped in 20 days after payment

Economical 300w cnc fiber laser cutting machine



Fiber laser cutting machine has faster cutting speed and higher quality cuting resultcompared to other cutting solutions. it adopts the mostsophisticated America IPG laser, combining CNC Machinery designed by our company and high strength welding body,after standard heat

treatment and process machining by large CNC milling machine.







Ohter advantages of fiber laser cutting machine:

#Compact structure, small floor area.

#Higher cutting quality and efficiency, cutting speed is up to 40 m/min with appearance and beautiful cutting edge.

#High precision serve motors, lead screws and guide ways with famous brands to ensure the efficiency and accuracy, greatly increasing the stability and reliability.

#Stability and reliability of light path system and control system.
#High performance and low operating cost, famous IPG fiber laser with up to more than 100 thousand hours life-cycle



Fiber laser cutting machine model:

1.1325 Fiber Laser Cutting Machine 1300X2500mm.

2.1530 Fiber Laser Cutting Machine 1500X3000mm.

3.2040 Fiber Laser Cutting Machine 2000X4000mm.

(Remark: Specific model should be produced with signed contract).



Cutting Thickness of fiber laser cutting machine:



Model

Materials

Max Thickness

Suitable thickness



Fiber500W

Stainless steel

4mm

3mm

Carbon steel

6mm

4mm

Aluminum

2mm

0mm



Fiber1000W

Stainless steel

6mm

5mm

Carbon steel

12mm

10mm

Aluminum

5mm

4mm



Fiber2000W

Stainless steel

10mm

8mm

Carbon steel

18mm

16mm

Aluminum

8mm

6mm






Technical Parameters of fiber laser cutting machine:



Model

1325

1530

2040

Working Area

1300X2500mm

1500X3000mm

2000X4000mm

Laser Type

 Fiber laser generator

Laser Power

500W

Laser Wavelength

1060 nm

Beam Quality

<0.373mrad

Positioning Accuracy

≤ ±0.03mm/m

Re-positioning Accuracy

≤±0.02mm/m

Cutting Speed

0-40m/min(depending on material and thickness)

Power Supply Rated Voltage

3-phase 380V/50Hz

X-axis Stroke

2500mm

3000mm

4000mm

Y-axis Stroke

1300mm

1500mm

2000mm

Z-axis Stroke

120mm

Working Table

Rack working platform

Control System

LaserCut V3.5 CNC control system

Location System

Red dot indicator

Water Cooling System

Constant temperature water chiller

Machine Weight

2000-8000kg

Machine Dimension

1800x3500x1600mm

2500x4300x1600mm

2900X5000X1600mm

Remark

Automatic exchange worktable, cover(option)

Fiber laser cutting machine details:

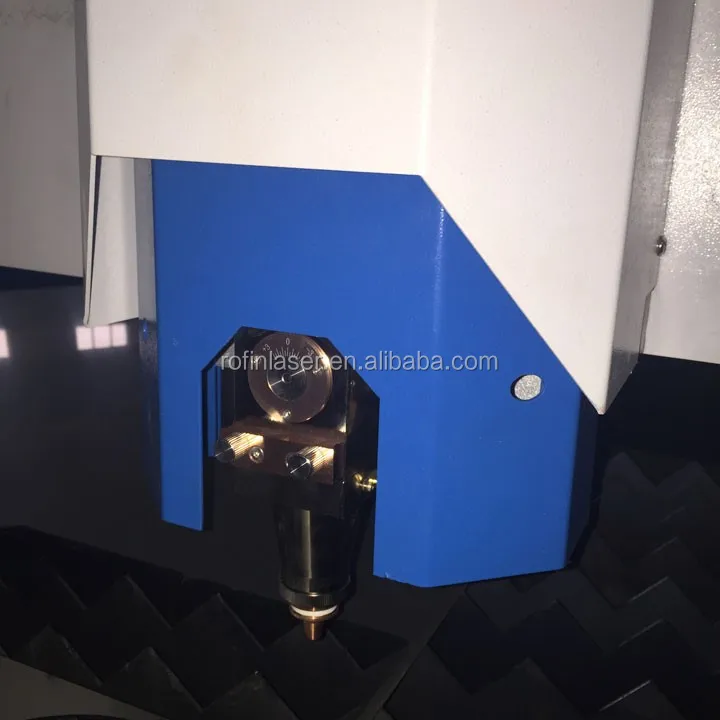

Professional laser head of fiber laser cutting machine:

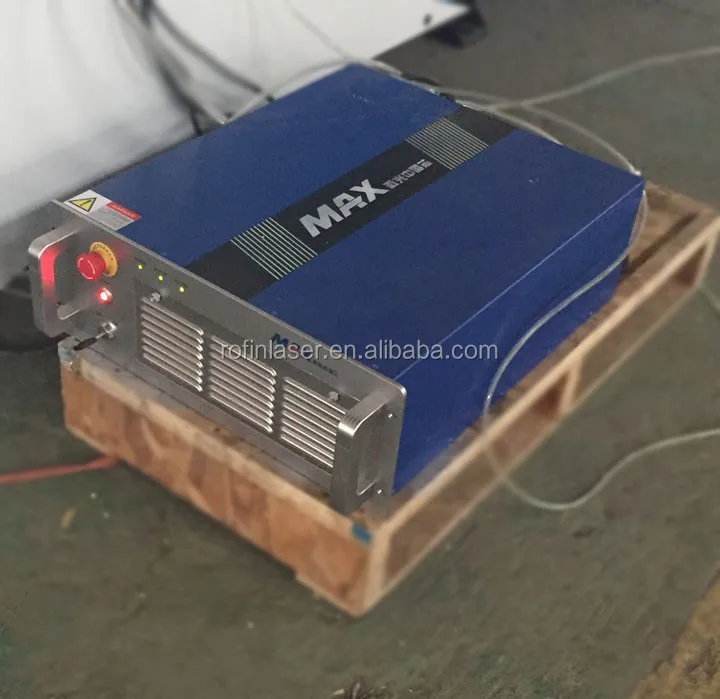

Laser genarator of fiber laser cutting machine:

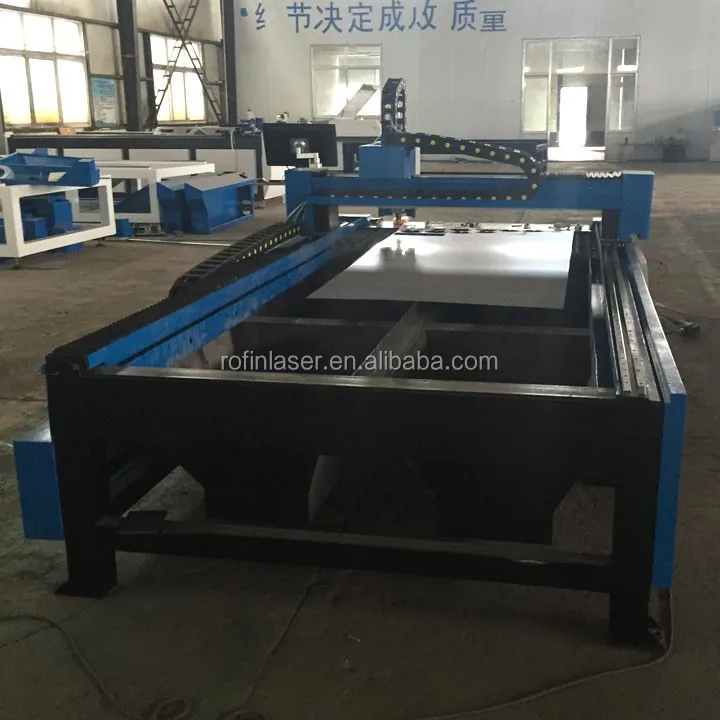

Machine heavy structure body of fiber laser cutting machine:

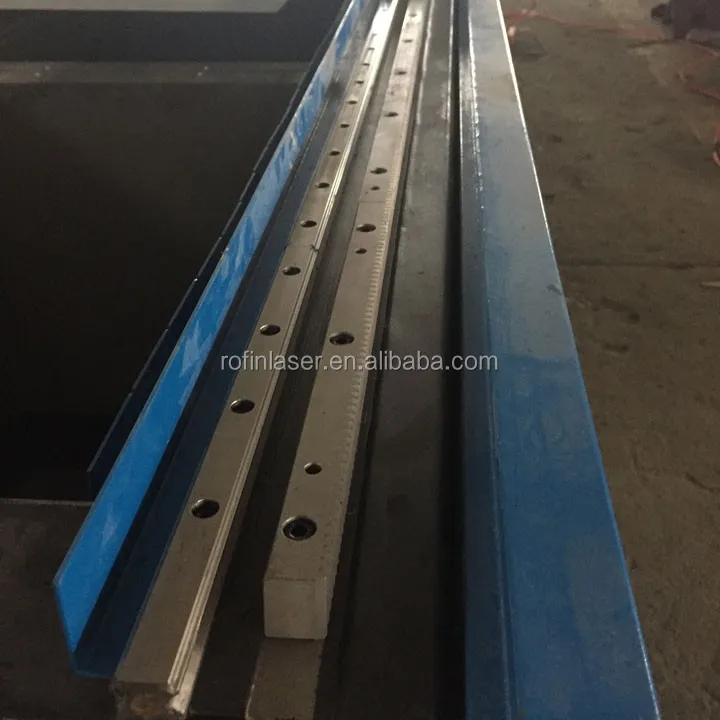

Taiwan Hiwin guide rail and rack of fiber laser cutting machine:


Electric box of fiber laser cutting machine:



Fiber laser cutting machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel

Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate,

Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.



Samples of fiber laser cutting machine:



Our other fiber laser cutting machine:



After sale service for fiber laser cutting machine:

1.Two years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery.

7.Our staff can be sent to your company to install or adjust if necessary.
